Medical Pendant – Rigid

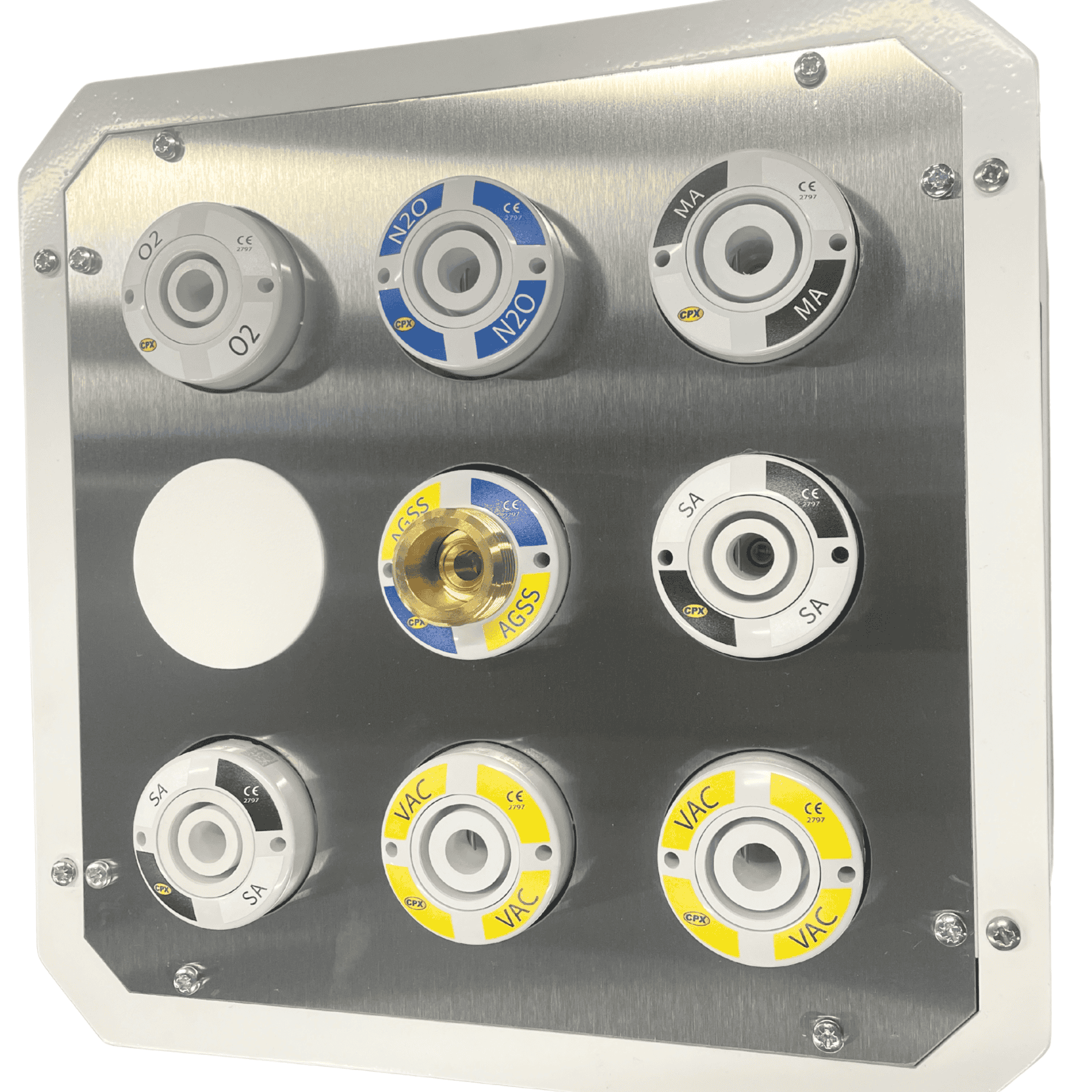

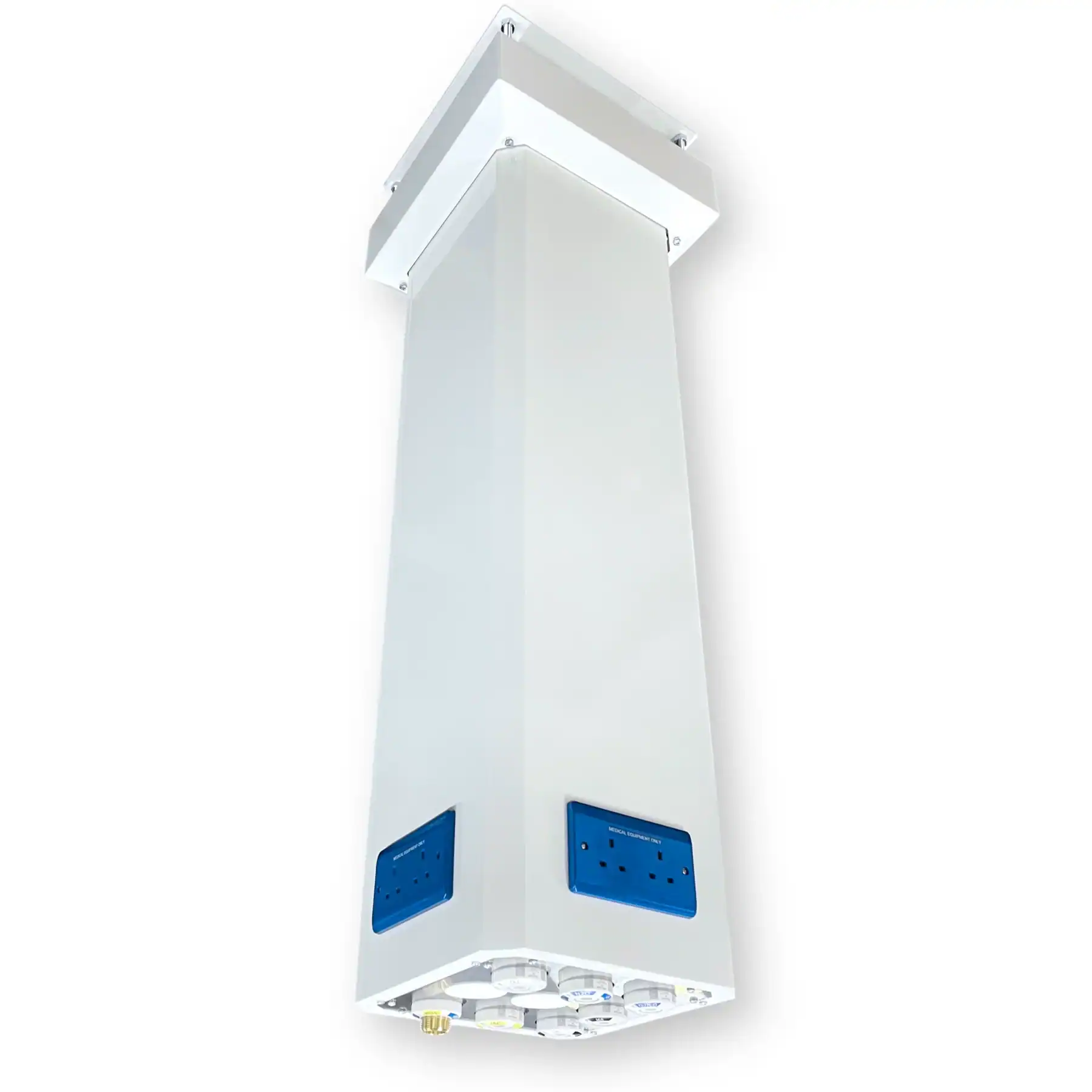

They are intended to distribute medical gases, AGSS, and electrical services to the operating table/anesthetic machine, whilst leaving the surrounding area free from trailing hoses and cables. Rigid Pendants are ceiling-mounted fixed columns complete with a first fix plate and ceiling shroud, with an epoxy powder-coated finish. A maximum of 9 medical gas and AGSS terminal units, complete with hose assemblies, can be accommodated within both rigid and retractable pendants.

Each pendant can accommodate a maximum of 8 electrical sockets. Other specialist outlets such as data sockets, equipotential sockets, etc. can be incorporated into the pendant as required.

Catalogue

Download Catalogue

Enter your Email

By clicking download you consent to Precision UK contacting you.

Product Codes
Product Code Pendant Type
PEND-RG-*QTY* Rigid Pendant
PEND-RT-*QTY*

Retractable Pendant

MOD-COMPACT-*QTY*-ALARM Compact AVSU Module
Example:   AVSU22-O2 22mm AVSU – Oxygen
Example:   AVSU-MOD-POLY-3A 3 Gas AVSU Module (Semi Flush or Surface Type)
Example:   MOD-COMPACT-3-ALARM AVSU Module – 3 Gas Compact c/w Digital Alarm



Standards & Requirements
  • HTM 02-01: Health Technical Memorandum Medical Gas Pipeline Systems

  • BS EN 7396: Medical Gas Pipelines for Compressed Medical Gases and Vacuum

  • BS EN ISO 11197: Medical Supply Units

  • BS EN 18082: Non-interchangeable Screw Threaded (NIST) Low-pressure Connectors for Medical Gases

  • BS EN 9170: Terminal Units for use with Compressed Medical Gases and Vacuum
