More Information
-
The AVSU can be installed as a flush or surface mounted.
-
Housed in a steel white epoxy coated box and a key-operated 90° lock for security with 20,000 lock combinations.
-
Gas Identification is located on the body of the AVSU behind the window and is immovable.
-

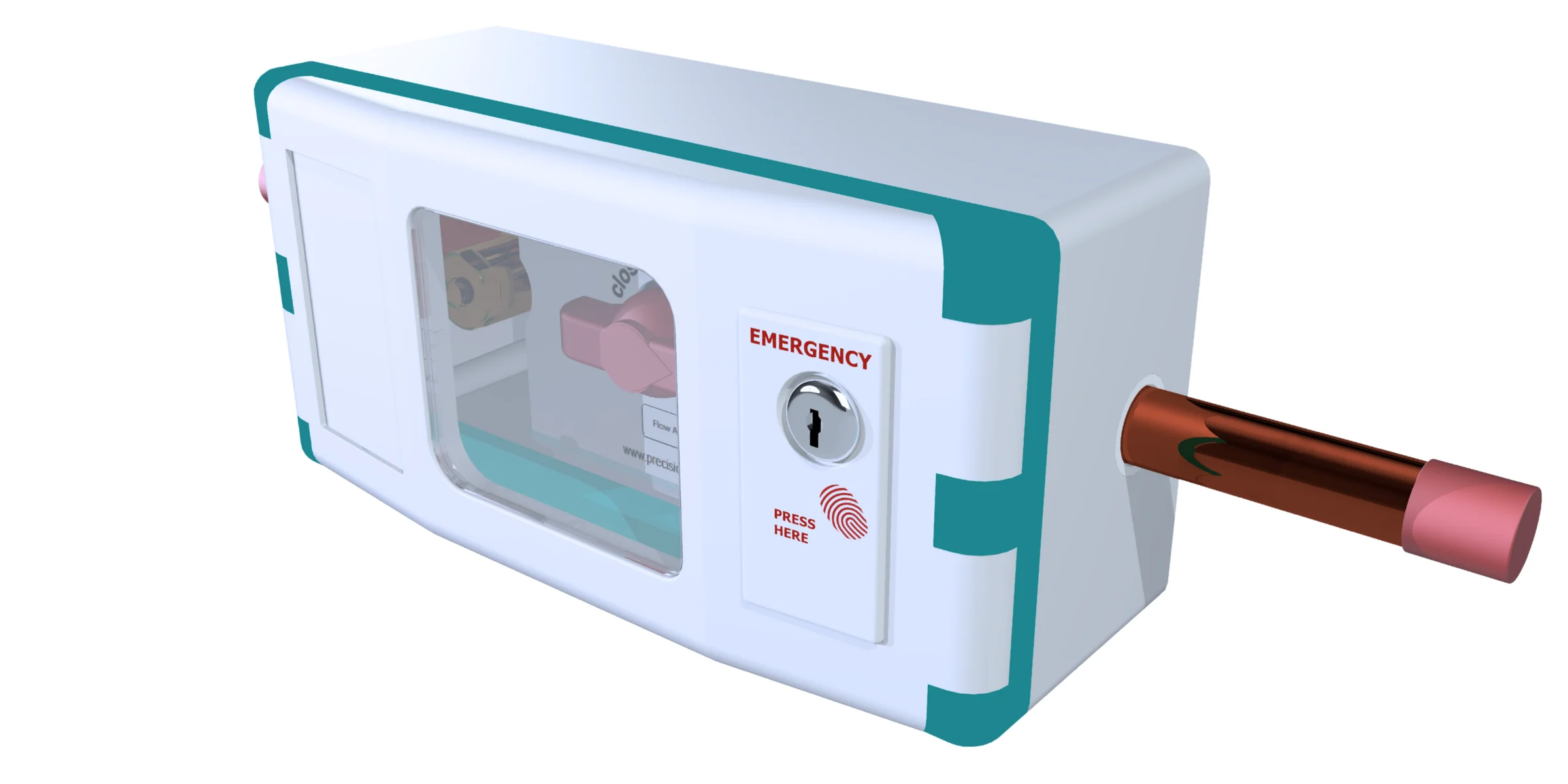

A large viewing window to the door gives an immediate indication of Gas Identification located on the body of AVSU, valve position and flow direction.
-
In an emergency, this can be gained by pulling the window thus allowing access to the valve. The anti-Tamper device can be fitted to the window and connected to our Digital Alarm and BMS to incorporate monitoring of all CPX AVSU’s.
-
The valve type is a 90° shut off ball valve, which is operated via a red ergonomic handle, each unit comes complete with a blanking plate which can be fitted, to either side of the valve.
-
Non-interchangeable NIST connectors are fitted upstream and downstream of the valve. Including 100% sealing serviceable non-return valves to allow the pipeline to be pressure tested and provide an easily accessible point for gas sampling.
-
Pressure sensors shall be fitted inside the box to enable local monitoring and servicing via Copper Sensing Pipe.
-
Side entry sizes available 22mm, 28mm, 35mm and 42mm (other entry versions available).
Product Codes
|
Product Code |
AVSU Type |
|
AVSU*SIZE*-*GAS* |
Single AVSU |
|
AVSU-MOD-POLY*QTY*A |
AVSU Module (Semi Flush or Surface Type) |
|
MOD-COMPACT-*QTY*-ALARM |
Compact AVSU Module |
|
Example: AVSU22-O2 |
22mm AVSU – Oxygen |
|
Example: AVSU-MOD-POLY-3A |
3 Gas AVSU Module (Semi Flush or Surface Type) |
|
Example: MOD-COMPACT-3-ALARM |
AVSU Module – 3 Gas Compact c/w Digital Alarm |
Standards & Requirements
-
HTM 02-01 and SHTM 02-01: Medical Gas Pipeline Systems.
-
BS EN 7396: Pipeline Systems for Compressed Medical Gases and Vacuum.
-
C11 NHS: Model Engineering Specification – Medical Gases.
-
BS EN 10524-2: Pressure Regulators.
-
BS EN 21969 High-Pressure Flexible Connectors.
- Service and Maintenance: Throughout the UK and worldwide our approved team of service and maintenance engineers provide immediate technical support.
