MGPS Overview

The Role of a Medical Gas Pipeline System

Medical Gas Pipeline Systems (MGPS) are critical healthcare engineering systems that provide a safe, continuous and controlled supply of medical gases and vacuum services throughout hospitals and healthcare environments.

Designed and installed in accordance with HTM 02-01, MGPS infrastructure supports patient care across operating theatres, intensive care units, emergency departments, wards and specialist treatment areas.

HTM 02-01 provides guidance for the design, installation, validation, verification and operational management of medical gas pipeline systems in healthcare premises.

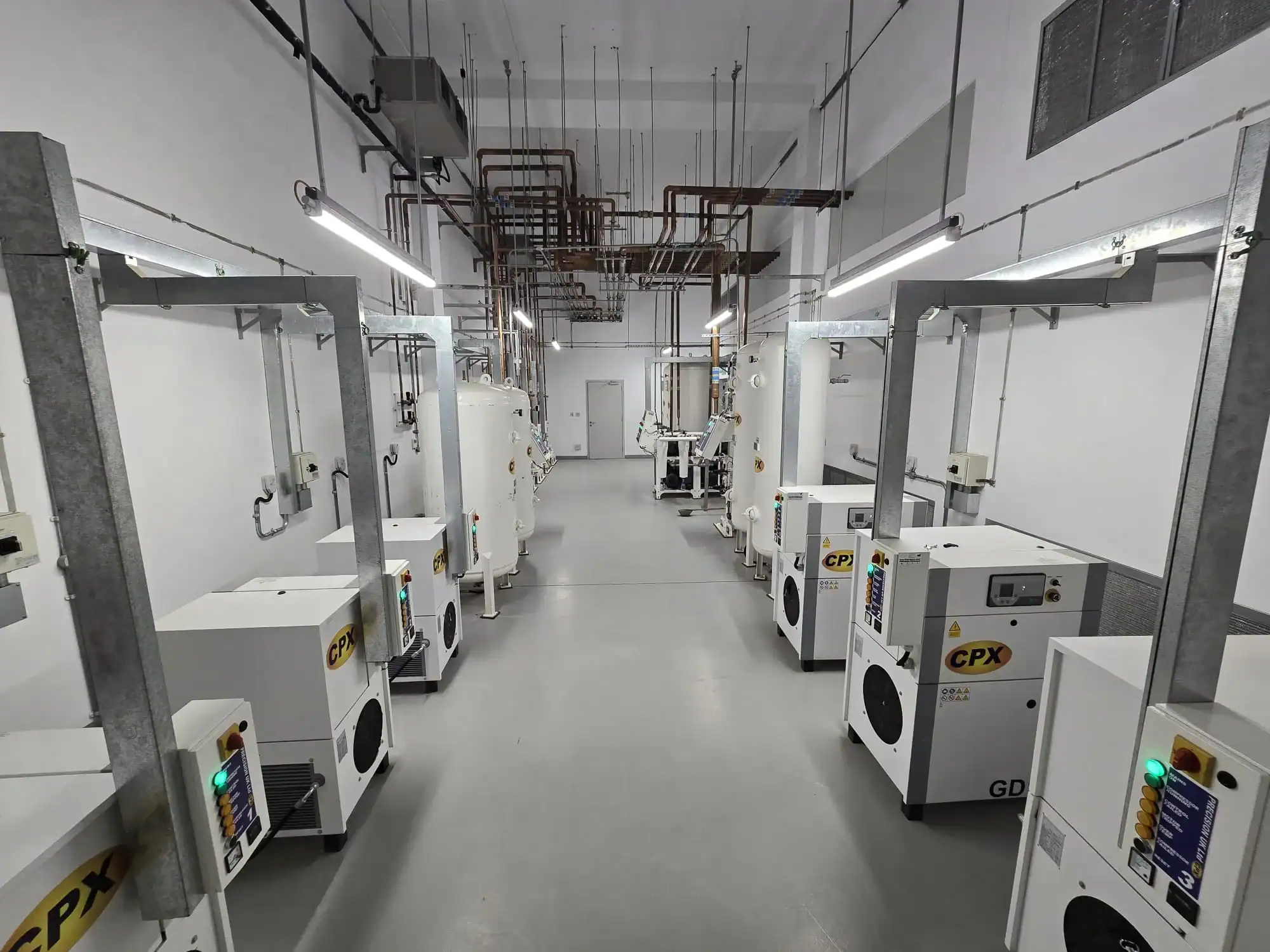

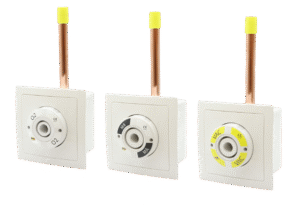

From the primary supply source in the plant room to the terminal outlet at the patient’s bedside, every component plays a vital role in maintaining system safety, reliability and performance.

The 3D hospital explorer above illustrates each area of the MGPS infrastructure and where CPX products can typically be found within a healthcare facility.

Or, continue reading for a more detailed breakdown of our CPX® systems and their role within the MGPS…

Table of Contents

• Plant Room
• Pipeline Infrastructure
• Pipeline Control

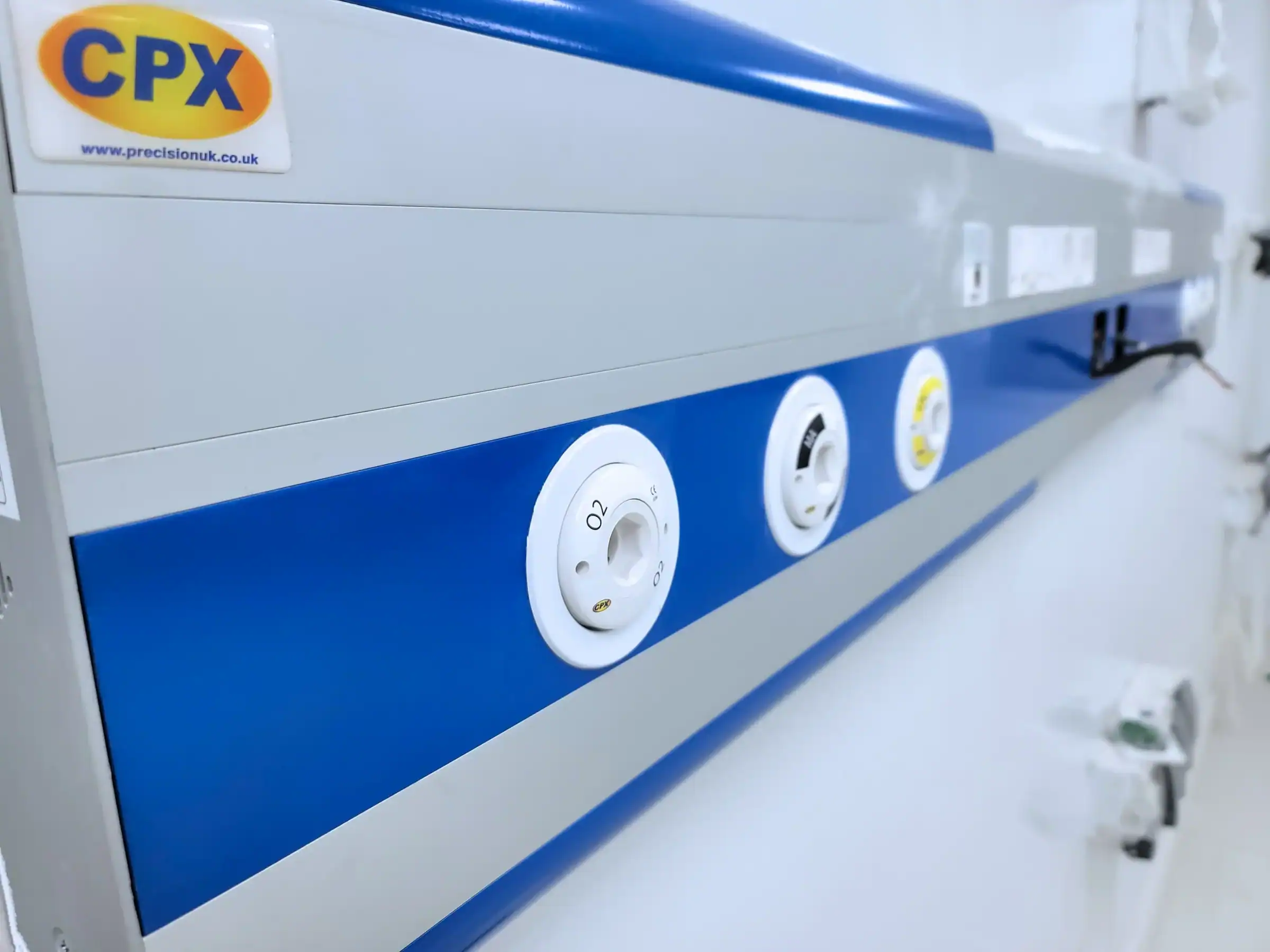

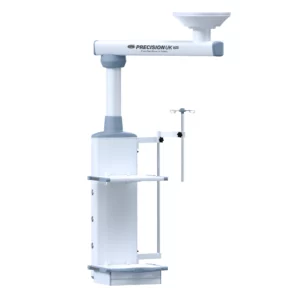

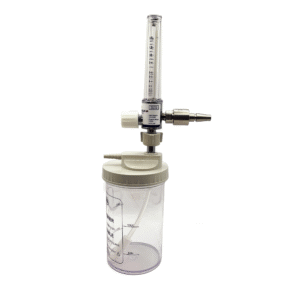

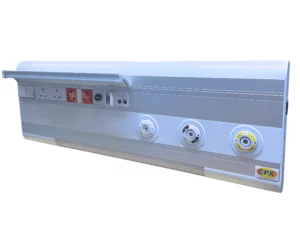

• Patient Area

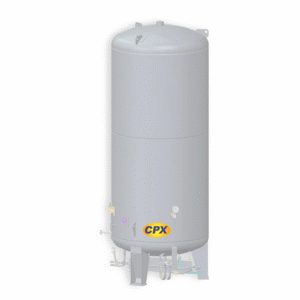

Liquid Oxygen (LOX) Tanks

Liquid Oxygen (LOX) Tanks provide the primary source of oxygen for healthcare facilities, enabling large volumes of oxygen to be stored efficiently in liquid form before being converted into gaseous oxygen and distributed throughout the Medical Gas Pipeline System (MGPS).

Maintaining a secure and uninterrupted supply is essential for patient care, and LOX Tanks enable healthcare facilities to continue reliable oxygen delivery, even during periods of increased demand.

Under HTM 02-01, oxygen supply systems must be designed with appropriate redundancy, monitoring and emergency provisions to minimise the risk of supply interruption.

Liquid Oxygen Tank installations must include pressure regulation, alarm monitoring, emergency reserve arrangements and clearly defined maintenance procedures to ensure patient safety at all times.

As the starting point of the oxygen distribution network, the reliability of the LOX installation directly impacts every downstream component within the MGPS.

Learn More About CPX® LOX Tanks

Medical Air Plants

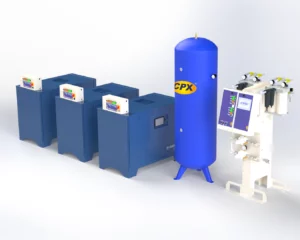

Medical air is classified as a medicinal product and is used extensively throughout healthcare environments for respiratory support, ventilators and numerous clinical applications.

Medical air plants must generate air that meets stringent quality requirements, which is achieved through carefully engineered compressor systems, filtration technology, dryers and monitoring equipment that remove contaminants, moisture and particulate matter before the air enters the pipeline network.

The quality of medical air is absolutely critical to patient safety. HTM 02-01 requires medical air systems to incorporate redundancy, automatic monitoring and alarm systems to ensure both air quality and system availability are maintained at all times.

Precision-engineered medical air plants are therefore fundamental to maintaining a compliant and resilient MGPS installation.

Learn More About CPX® Medical Air Plants

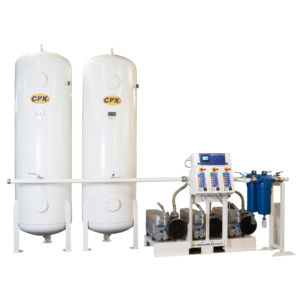

Medical Vacuum Plants

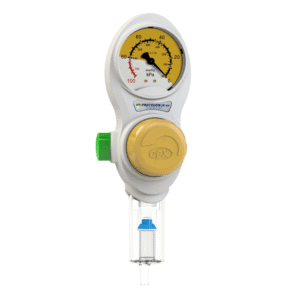

Medical vacuum systems provide the suction capability required throughout healthcare facilities for patient treatment, surgical procedures and clinical interventions.

From operating theatres and intensive care units to general wards and treatment rooms, vacuum systems play a vital role in airway management, fluid removal and infection control procedures. Any interruption to vacuum availability can have an immediate impact on patient care.

HTM 02-01 requires Medical Vacuum Plants to be designed with sufficient capacity, resilience and monitoring to ensure reliable operation under all conditions. This includes multiple pumps, automatic duty rotation, alarm systems and reserve capacity to maintain service during maintenance or equipment failure.

As one of the most heavily relied upon services within an MGPS, vacuum plant performance is critical to the overall functionality and safety of the healthcare environment.

Learn More About CPX® Medical Vacuum Plants

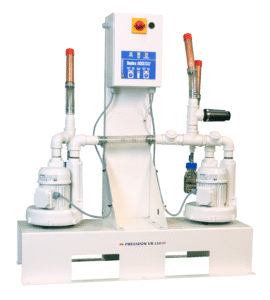

Anaesthetic Gas Scavenging System (AGSS) Plants

Anaesthetic Gas Scavenging System (AGSS) Plants are designed to safely remove excess anaesthetic gases from operating theatres and recovery areas.

During surgical procedures, anaesthetic gases that are not absorbed by the patient must be safely extracted to prevent them accumulating within the clinical environment. Long-term exposure to waste anaesthetic gases can present health risks to healthcare professionals and negatively impact theatre conditions.

AGSS Plants form an important part of HTM-compliant theatre infrastructure, by ensuring waste gases are continuously removed and safely discharged. Modern AGSS installations incorporate dedicated monitoring, alarm systems and flow management to maintain effective extraction performance.

By protecting both clinical staff and patients, AGSS contribute directly to safer healthcare environments and regulatory compliance.

Learn More About CPX® AGSS Plants

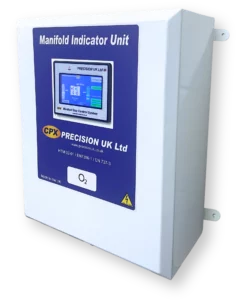

Medical Gas Manifolds

Medical gas manifolds provide a controlled method of supplying gases from cylinder banks into the pipeline system. They are commonly used for Oxygen (O₂) reserve supplies and gases such as Nitrous Oxide (N₂O), Carbon Dioxide (CO₂), Medical Air (MA4), Surgical Air (SA7), and Nitrogen (N₂).

The importance of a manifold system lies in its ability to maintain continuous gas availability.

Automatic manifolds monitor cylinder pressure and automatically switch between duty and reserve banks when a primary bank becomes depleted. This automatic changeover capability reduces the risk of supply disruption and helps eliminate human error during cylinder replacement.

HTM 02-01 places significant emphasis on supply continuity and resilience. Compliant manifold systems must provide clear status indication, alarm integration, pressure regulation and sufficient reserve capacity to support hospital operations during emergencies or maintenance activities.

Without properly designed manifold systems, healthcare facilities would face increased risk of unexpected gas supply interruptions that could directly impact clinical services.

Learn More About CPX® Medical Gas Manifolds

Oxygen Generators

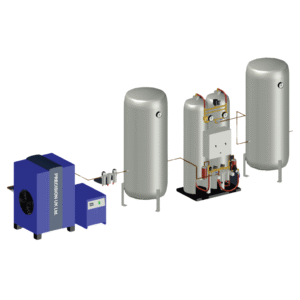

Medical Oxygen Generators provide healthcare facilities with an independent source of medical oxygen by producing oxygen on-site using Pressure Swing Adsorption (PSA) technology.

Increasingly adopted across hospitals and healthcare environments, oxygen generation systems reduce reliance on external oxygen deliveries while improving supply resilience and operational control.

As a primary source within the Medical Gas Pipeline System (MGPS), oxygen generators play a vital role in ensuring a continuous supply of oxygen for patient care.

Their ability to produce oxygen on demand helps healthcare providers maintain continuity of service during periods of increased demand or supply chain disruption.

To comply with HTM 02-01, oxygen generation systems must incorporate appropriate monitoring, alarm functionality, redundancy and reserve supply arrangements to safeguard patient safety and maintain system reliability.

When correctly integrated into the wider MGPS infrastructure, oxygen generators provide a cost-effective, sustainable and dependable oxygen supply solution for modern healthcare facilities.

Learn More About CPX® Oxygen Generators

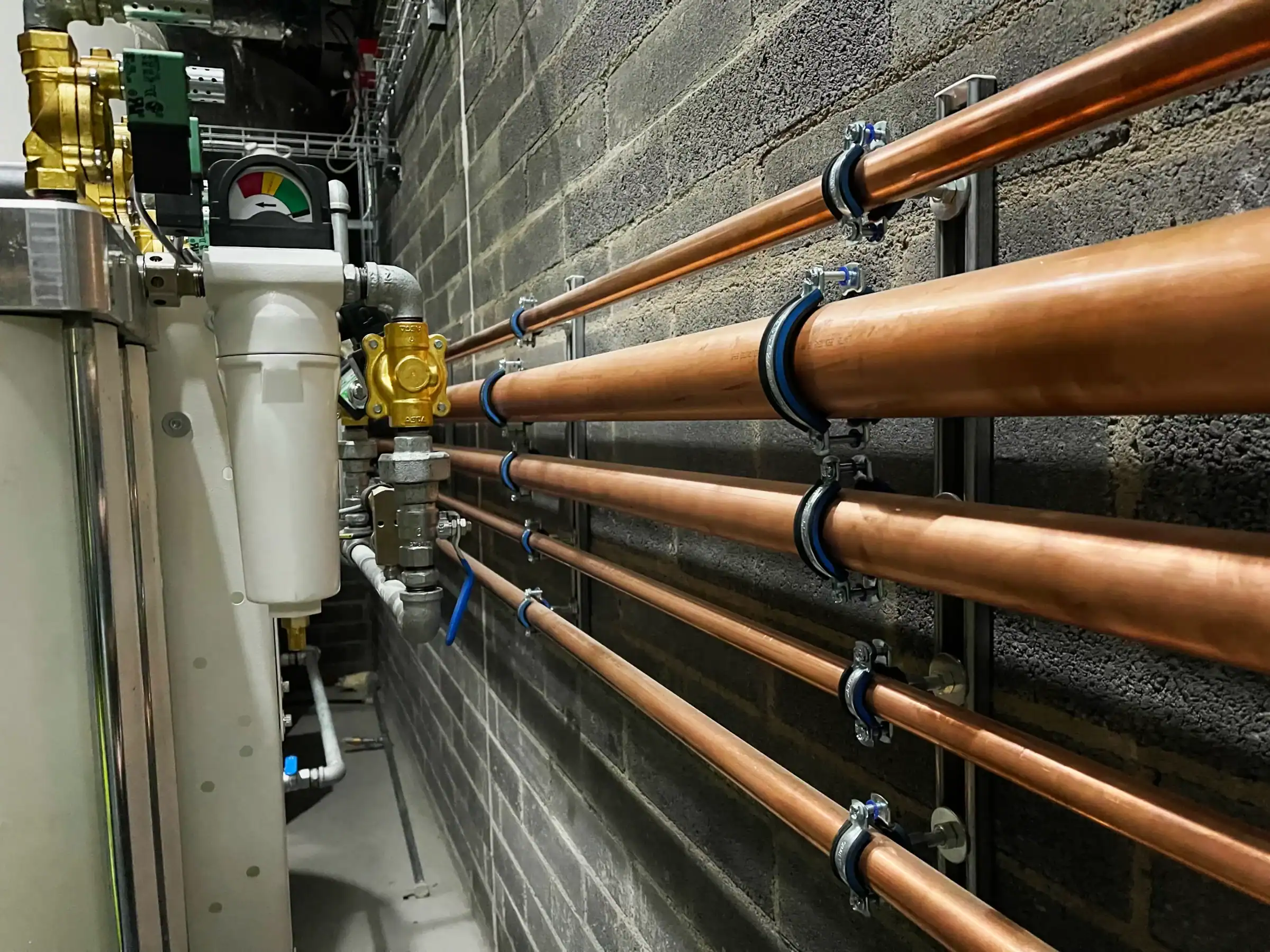

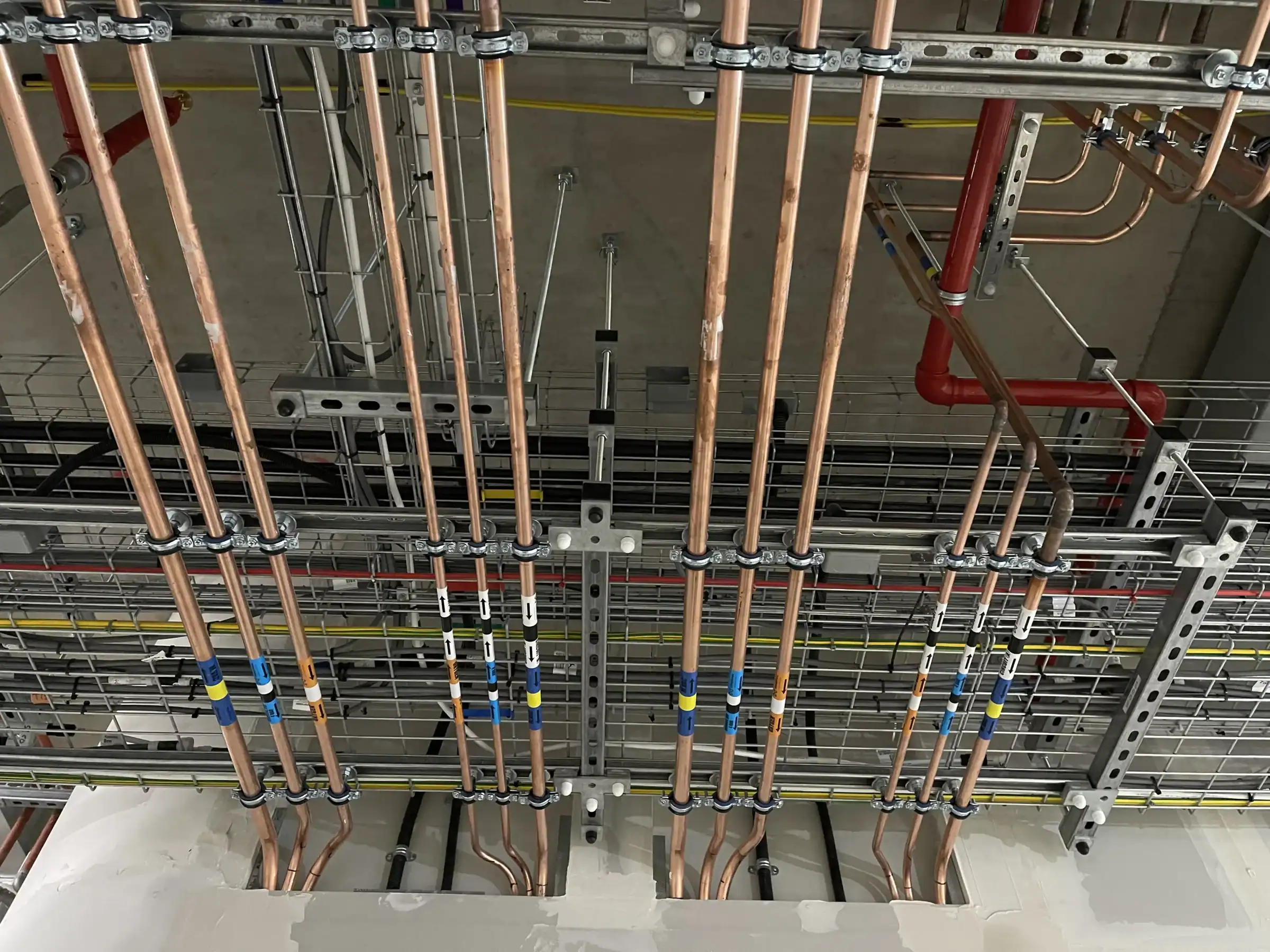

Degreased Medical Copper Tube

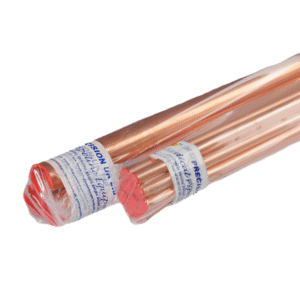

Medical Degreased Copper Tube provides the primary pathway for transporting medical gases throughout a healthcare facility.

Unlike standard copper pipework, medical gas tube is specially cleaned and degreased during manufacture to eliminate contaminants that could compromise gas purity or patient safety.

As every medical gas passes through the pipeline network before reaching the patient, the quality and integrity of the copper tube are fundamental to the performance of the entire MGPS.

HTM 02-01 requires the use of approved materials and installation practices that maintain cleanliness, reliability and long-term system integrity, making medical degreased copper tube an essential component of every compliant medical gas installation.

Learn More About CPX® Degreased Copper Tube

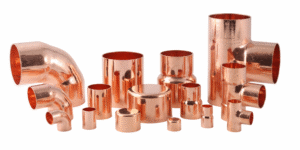

Degreased Medical Copper Fittings

Medical Degreased Copper Fittings create the joints and connections that hold the medical gas pipeline network together.

Manufactured and cleaned specifically for medical gas applications, these fittings ensure a secure, leak-free system while maintaining the cleanliness standards required for medical gas distribution.

The performance of an MGPS depends not only on the quality of the pipework itself but also on the integrity of every connection within the network.

HTM 02-01 requires fittings to be suitable for medical gas use and installed using validated procedures to prevent contamination, leakage and system failure.

Properly specified fittings help ensure the safe and reliable delivery of medical gases throughout the healthcare environment.

Learn More About CPX® Degreased Copper Fittings

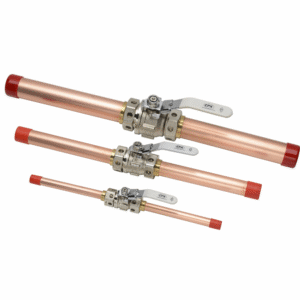

Medical Lockable Line Valves

Medical Lockable Line Valves provide a secure means of isolating sections of the pipeline network during maintenance, repairs or emergency situations.

Positioned throughout the MGPS, they allow authorised personnel to safely control gas flow without affecting the operation of the wider system.

Their role is critical in maintaining service continuity, as individual areas can be isolated while medical gas supplies remain available elsewhere within the facility.

To support HTM 02-01 compliance, lockable line valves must be clearly identified, accessible and designed to prevent unauthorised operation, helping healthcare providers manage medical gas systems safely and efficiently.

Learn More About CPX® Lockable Line Valves

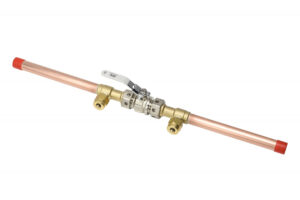

Medical NIST Lockable Line Valve

Medical NIST Lockable Line Valves combine pipeline isolation with gas-specific safety features.

Utilising the Non-Interchangeable Screw Thread (NIST) system, these valves prevent the connection of incorrect gas services, helping to eliminate the risk of cross-connection and misidentification.

Within a hospital environment where multiple medical gases are distributed through adjacent services, positive gas identification is essential.

HTM 02-01 places significant emphasis on preventing misconnections throughout the MGPS, and NIST lockable line valves provide an additional layer of protection by ensuring each gas service remains uniquely identifiable and safely controlled.

Learn More About CPX® NIST Lockable Line Valves

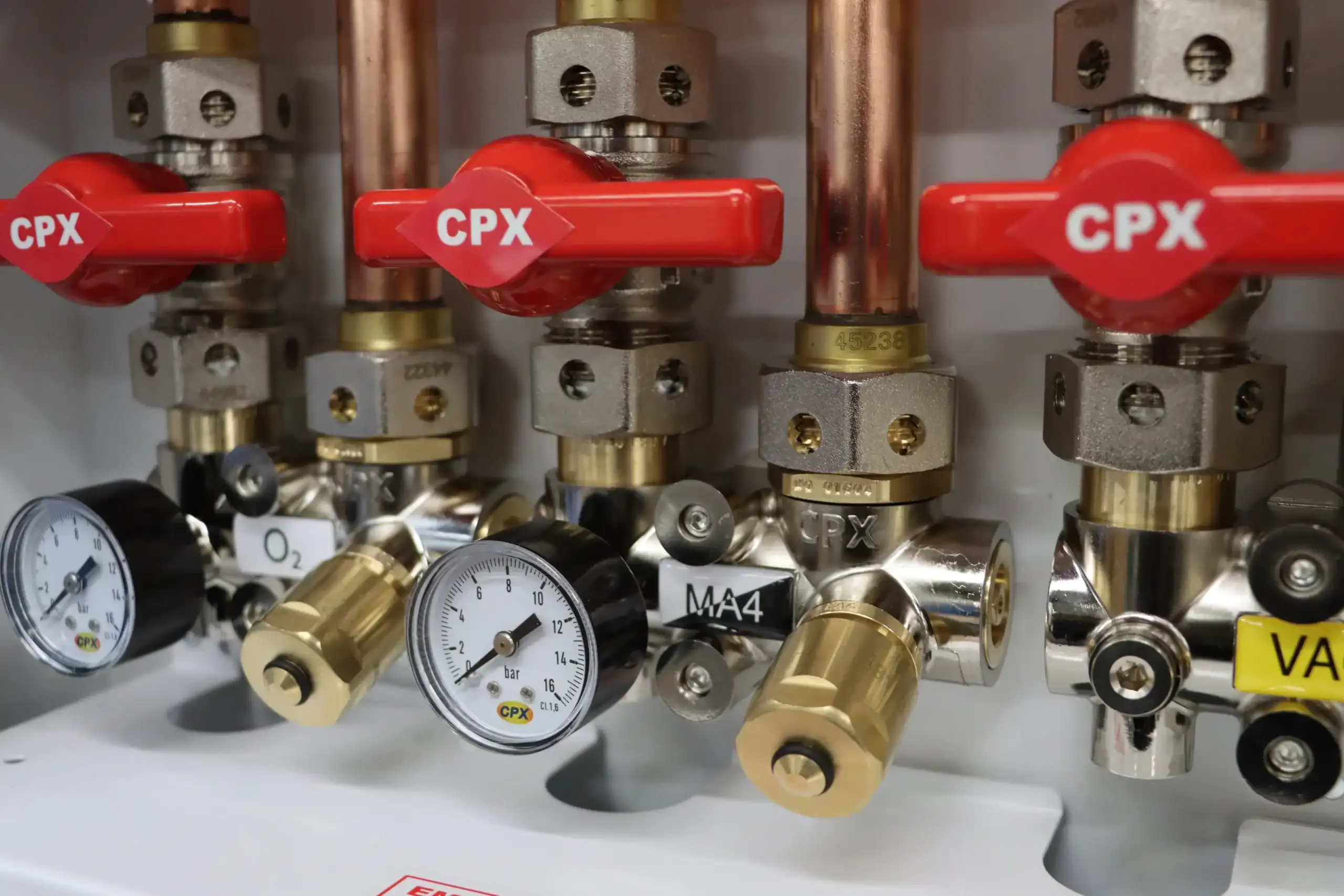

Area Valve Service Units (AVSUs)

Area Valve Service Units (AVSUs) provide a safe and controlled method of isolating medical gas services to specific departments, wards or clinical areas without affecting the wider hospital network.

They are a fundamental safety component within every Medical Gas Pipeline System, enabling maintenance, testing and emergency works to be carried out whilst maintaining uninterrupted patient care.

HTM 02-01 requires AVSUs to be positioned strategically throughout healthcare facilities, ensuring medical gas services can be isolated quickly and safely when required.

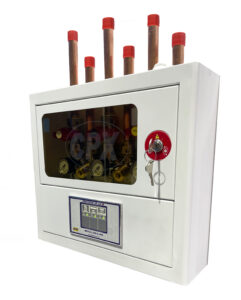

Precision UK offers a range of AVSU solutions to suit different healthcare environments, including Laminate AVSU Module, HTM Compact AVSU, Compact AVSU and Single AVSUs, providing flexibility for both new-build and refurbishment projects.

Learn More About CPX® AVSUs

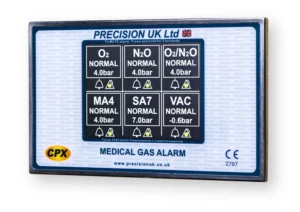

Digital Area Alarms

Digital Area Alarms provide continuous monitoring of medical gas pipeline conditions, helping healthcare facilities maintain safe and reliable operation of their MGPS.

By displaying live pressure information and generating visual and audible alerts when abnormal conditions occur, these systems enable rapid response to potential issues before they impact patient care.

As required by HTM 02-01, medical gas alarm systems play a critical role in warning staff of pressure fluctuations, supply failures and other system faults.

Modern digital alarm panels offer improved visibility, enhanced diagnostics and seamless integration with wider healthcare infrastructure, helping estates teams maintain compliance while ensuring uninterrupted medical gas availability throughout the facility.

Learn More About CPX® Digital Area Alarms
