More Information

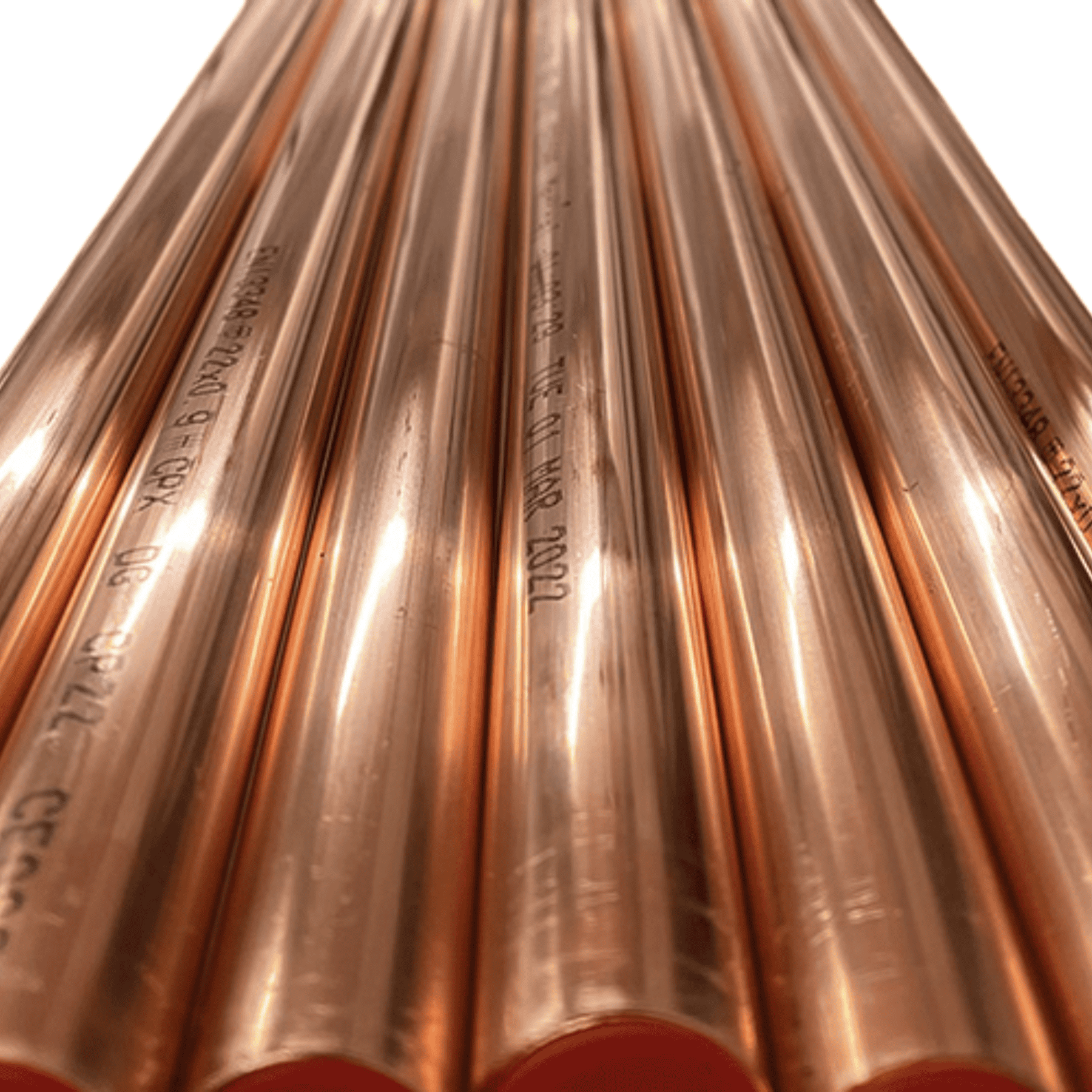

Precision UK’s CPX-degreased copper tube is manufactured in the UK under BS EN 13485 Medical Devices: Quality Management Systems. All tube is manufactured under strict quality control procedures to ISO 9001:2008.
It is suitable for jointing degreased medical gas copper fittings and other medical gas equipment compliant with BS EN 13348, BS EN 1057, BS 2871 Part 1 Table X, EN 7396, and HTM 02-01. CPX copper tube is designed for use in Medical Gas Pipeline System (MGPS) installations and incorporates the specialist requirement of the MGPS industry to include cleanliness, packaging, and usability required to attain the levels of quality as stated particularly in HTM 02-01.
Product Codes
| Product Code | Size |
|
12CP |
12mm x 0.6mm |
|
15CP |
15mm x 0.7mm |
|
22CP |
22mm x 0.9mm |
|
28CP |
28mm x 0.9mm |
|
35CP |
35mm x 1.2mm |
|
42CP |
42mm x 1.2mm |
|
54CP |
54mm x 1.2mm |
|
67CP |
67mm x 1.2mm |
|
76CP |
76mm x 1.5mm |
|
108CP |
108mm x 1.5mm |
Standards & Requirements
- Each pipe is cleaned to have a maximum carbon level 0.20mg/dm².
- Each pipe is individually end-capped and bundled in sealed polythene bags to maintain cleanliness.
- Chemical composition CU.DHP to ISO 1190-1/CW024A to EN1412.
- All copper tube is manufactured under strict quality control procedures to ISO 9001.
- BSI Kitemarked
- Batch numbering for traceability is included on all pipework.
- All copper tube from sizes 12mm through to 108mm are engraved/permanently ink marked with the following information: EN 13348, nominal dimensions, manufacturer details, part no.
- 25-year guarantee
